In industrial bulk material handling, bucket elevators are widely used for lifting powders, granules, and small lumps vertically. Their reliability and efficiency largely depend on the quality and suitability of Bucket Elevator Components. While structural design plays a role, it is the material composition of each component that often determines whether a bucket elevator can withstand harsh operating conditions, abrasive materials, or corrosive environments. From the buckets themselves to the traction elements, casing, and drive system, material choice directly affects equipment longevity, energy efficiency, and maintenance costs.
This article provides a detailed discussion on how different materials influence the performance of bucket elevator components. It highlights the advantages and limitations of various options such as plastic, steel, and stainless steel buckets; compares belt versus chain traction systems; and evaluates the durability of casings and drive assemblies. It also explores special requirements like food-grade and corrosion-resistant materials. Finally, we will emphasize why choosing the right material is the key factor in extending the service life of bucket elevators and maintaining system stability.
The bucket is the most visible and directly functional component of a bucket elevator. It directly contacts the bulk material being lifted, making its material selection critical for efficiency and product quality. Several factors need to be considered, including:
Abrasiveness of the material: Rough materials like cement clinker, coal, or minerals require wear-resistant buckets.
Temperature of the material: Hot materials can deform plastic buckets or reduce the performance of weaker alloys.
Corrosiveness and contamination risk: In industries like food, pharmaceuticals, or chemicals, corrosion resistance and hygiene are top priorities.
The bucket material not only affects how long the bucket lasts but also influences the surface finish of the conveyed product, the likelihood of material sticking, and overall operational safety.
When choosing bucket materials, the three most common options are plastic, steel, and stainless steel. Each has its strengths and limitations, making them suitable for different applications.

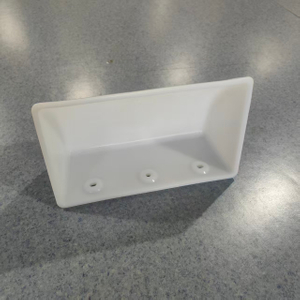

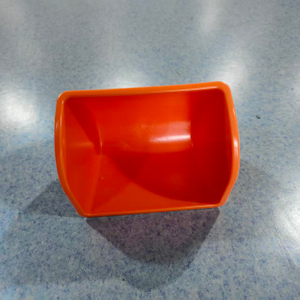

Plastic buckets are lightweight and relatively inexpensive. They are widely used in industries handling food products, grains, and light abrasives. Their smooth surface reduces material sticking and minimizes product damage. Additionally, plastic buckets generate less noise during operation and reduce overall elevator weight, lowering energy consumption.
However, their limitations include:
Poor resistance to high temperatures (generally unsuitable above 80–100°C).
Lower wear resistance compared to metal buckets.
Reduced structural strength for heavy-duty applications.
Steel buckets remain the industry standard for heavy-duty material handling such as in cement plants, mining, and construction. Their advantages include:
High tensile strength and impact resistance.
Superior durability in abrasive environments.
Cost-effectiveness compared to stainless steel.
On the downside, steel buckets are prone to rust and corrosion when exposed to moisture, chemicals, or acidic materials. They are also heavier, increasing power consumption.
Stainless steel buckets combine durability with excellent corrosion resistance. They are the preferred choice in food processing, chemical, and pharmaceutical industries. Their key advantages include:
Resistance to rust and chemical corrosion.
High durability even with abrasive or sticky materials.
Compliance with hygienic and food-grade requirements.
Their main limitation is cost—stainless steel buckets are significantly more expensive. Nevertheless, the long-term savings in reduced maintenance and extended service life often justify the investment.
The traction element is the backbone of any bucket elevator. It connects all buckets and transmits the lifting force from the drive to the load. Two main options dominate: belt traction and chain traction.
Belts:
Quieter, smoother operation with lower maintenance.
Lighter in weight, reducing power consumption.
Limited resistance to extremely high temperatures and heavy shock loads.
Suitable for grain, fertilizer, or powder handling.
Chains:
Withstand higher loads and temperatures.
Superior durability in harsh environments.
Require lubrication and more frequent maintenance.
Commonly used in cement, mining, and other heavy industries.
The choice between belts and chains often depends on operating conditions. Belts are ideal for light to medium-duty applications, while chains excel in heavy-duty and high-temperature environments.
One of the most important considerations in Bucket Elevator Components is how they handle wear and heat.
Bucket elevators often handle highly abrasive materials such as sand, clinker, or crushed minerals, which can cause rapid wear on standard components. To ensure durability, components are manufactured from hardened steel or equipped with specialized coatings. In some cases, ceramic liners are installed inside buckets to further reduce abrasion, prolong service life, and maintain efficient material handling.
For hot materials (150°C and above), plastic components are unsuitable. Steel or alloy components maintain structural stability and ensure safe operation.
Balancing these two factors helps ensure the elevator can withstand daily operations without frequent breakdowns or costly replacements.
Beyond buckets and traction elements, the casing and drive system form the structural framework of the bucket elevator. Their materials must be carefully selected to guarantee long-term stability.
The casing of a bucket elevator, typically constructed from carbon steel or stainless steel, must withstand external forces, internal abrasion from transported materials, and environmental challenges such as moisture, dust, and corrosion. A durable casing ensures long-term structural integrity and reduces maintenance frequency, directly contributing to system reliability.
Drive assemblies, comprising the motor, gearbox, pulleys, and sprockets, are exposed to high operational loads and stress cycles. Materials like cast iron or alloy steel are commonly selected for their superior strength, wear resistance, and fatigue durability. Proper material choice ensures consistent power transmission, minimizes downtime, and extends the overall lifespan of the elevator system.
Failure in these components often leads to costly downtime, making material durability an essential priority.
In industries such as food, pharmaceuticals, and chemicals, special material considerations go beyond wear and strength.
Corrosion Resistance: Acidic, alkaline, or moisture-rich environments can rapidly degrade ordinary steel components. Stainless steel, galvanized coatings, or polymer linings provide superior protection.
Food-Grade Requirements: Materials must comply with hygiene standards, be easy to clean, and avoid contamination risks. Stainless steel and specific plastics certified for food contact are widely used in these settings.
Meeting these requirements not only ensures compliance with regulations but also enhances product quality and consumer safety.
Choosing the right material for Bucket Elevator Components is not just a technical decision—it is an investment in efficiency, reliability, and safety. Plastic buckets excel in lightweight, low-cost applications but are unsuitable for high temperatures. Steel buckets provide unmatched strength for abrasive materials, while stainless steel ensures hygiene and corrosion resistance in specialized industries. Similarly, belts are efficient for lighter loads, while chains dominate in heavy-duty, high-temperature operations.
Ultimately, the durability of the casing, drive assemblies, and auxiliary parts ensures the entire system operates smoothly over years of service. By carefully matching materials to application requirements, companies can significantly extend equipment lifespan and reduce maintenance costs.
For businesses seeking high-quality bucket elevator systems, working with a trusted supplier is critical. Jiangsu Jingwei Conveying Equipment Co., Ltd. specializes in designing and manufacturing durable bucket elevator solutions tailored to diverse industrial environments. Their expertise in material selection and component optimization ensures reliable performance and long-term cost savings.
