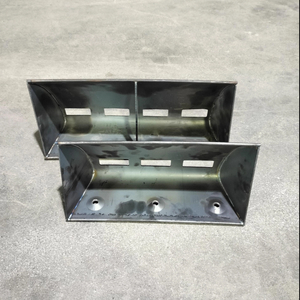

High-capacity, precision-engineered, wear-resistant, and corrosion-protected DS Series Deep TYPE Steel Bucket

Product Description

DS series deep-type pressed steel buckets are specially designed for high-efficiency vertical conveying of granular, powdered, and small bulk materials. Made from high-quality carbon steel or stainless steel through precision pressing and bending, these heavy-duty buckets feature a deep design that significantly increases loading capacity, making them ideal for high-volume, continuous industrial operations such as grain processing, building materials, chemical, and mining industries. The product surface can be treated with zinc plating or powder coating for corrosion resistance, ensuring long-term stable performance even in harsh environments.

Key Features

1. Deep-Type High-Capacity Design

• The deepened bucket body increases loading capacity by 20%~30% compared to standard buckets, making it ideal for high-density or poor-flow materials (e.g., grains, mineral sands).




2. Premium Materials & Manufacturing

• Constructed from Q235 carbon steel/304 stainless steel via precision pressing, with reinforced edges for deformation resistance and impact durability. The seamless structure prevents material buildup.




3. High-Efficiency Discharge & Low Residue

• Optimized curved bucket bottom design coordinates with the elevator head pulley speed to ensure complete discharge, minimizing material residue and energy waste.




4. Enhanced Wear Resistance

• Critical contact surfaces can be equipped with wear-resistant steel plates or overlay welding, extending service life when handling abrasive materials (e.g., cement, ores).




5. Modular Installation

• Standardized bolt holes compatible with mainstream bucket elevators (TD/TH/NE series), enabling quick replacement and reduced maintenance costs.




6. Corrosion-Resistant Options

• Available in galvanized, powder-coated, or stainless steel variants to suit humid, high-temperature, or corrosive environments (e.g., port storage, chemical production lines).

Applications

Whole stamping steel bucket

Our steel buckets use high quality steel and deep stretching manufacturing process.Whole stamping no seamless and welding, have more strength and abrasion resistance.

MATERIAL:carbon steel, stainless steel.

• Whole stamping steel bucket adopts deep drawing processing lead to higher overall strength.

• High temperature performance is outstanding, especially suitable for high temperature environment

• High surface hardness, suitable for conveying the very sharp material and large bulk material.

• Can mixed use with plastic bucket,attention to balance problem.

• It is suitable for conveying bulk materials.

DS Series Deep TYPE Steel Bucket

• Suitable for mixed discharge or gravity discharge.

• Recommended minimum bucket distance is"C+25 mm size can be adjusted according to request of lifting capacity

• Suggest hoist speed 2.5 meters/seconds or less can adjust base on the pulley diameter size or throw food Angle.

• Recommended"(Z-Y)+10%"volume as available capacity of the engineering design.
