PVC solid woven series
PVC elevator belt has solid woven carcass as the core put it into impreanated PVC paste resin to plastify under high temperature.it is fire resistance and anti-static solid woven elevator belt.

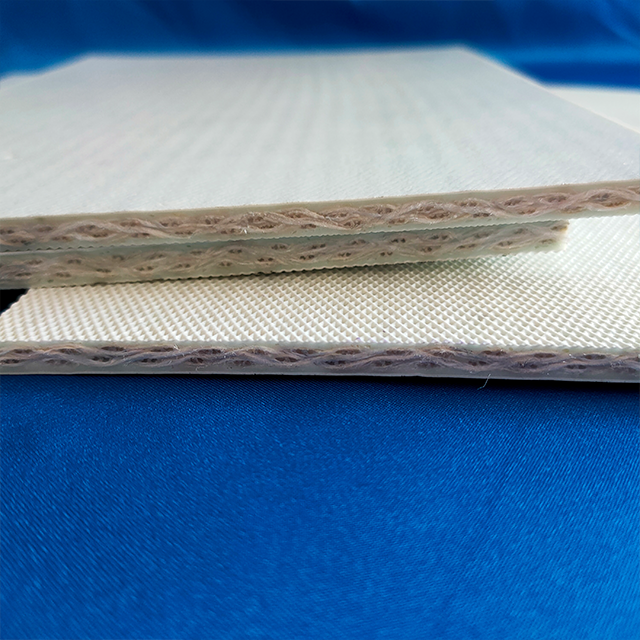

The carcass of PVC belt is solid woven type,which inter weaved by polyester and cotton Compared to the rubber elevator belt, it is uniformly stressed to ensure the strong elevating capability.No delaminating occurs under normal operating conditions. Flexibility allows for smoother running along the elevator pulley,keep a good running trail and not easy to off track.
Tight woven carcass after dipping in PVC paste resin have the excellent ability of elevating,at the same time have higher tear resistant performance,can also prevent the bolts pull-through easily, make reliable and secure fixing of the bucket to the belt.
PVC belt has better characteristics of resistance to oil and chemical soivent.wear resistance and anti-corrosion.
PVG belt and PU belt is our company combined with the latest trend in industry to develop they have obtained many patents, reached the leading environmental protection and food grade requirements in domestic.
Characteristics of fire resistance and anti-static make this belt more safer more effective for using in grain handling applications
(1) High-Strength Integrated Core Structure
The belt core is constructed with multi-layer interwoven polyester filaments and cotton yarns, forming a unified woven structure. This eliminates the delamination or surface peeling issues common in traditional multi-layer rubber belts caused by uneven stress distribution across layers.
Ensures even force distribution, high linearity of the belt body, stable operation, and minimal deviation or collisions with elevator drums.
(2) Outstanding Physical Properties
Superior Tear Resistance: The plasticized and densified core structure delivers significantly enhanced tear resistance and anti-burst fiber performance compared to conventional layered cores.
Abrasion & Corrosion Resistance: Inherent PVC properties provide excellent oil resistance, chemical solvent resistance, moisture-proofing, and wear resistance.
(3) Enhanced Safety Performance
Flame Retardant & Anti-Static: Complies with industrial safety standards, effectively preventing electrostatic sparks and combustion risks, ensuring safe operation in flammable/explosive environments.
 |  |  |  |

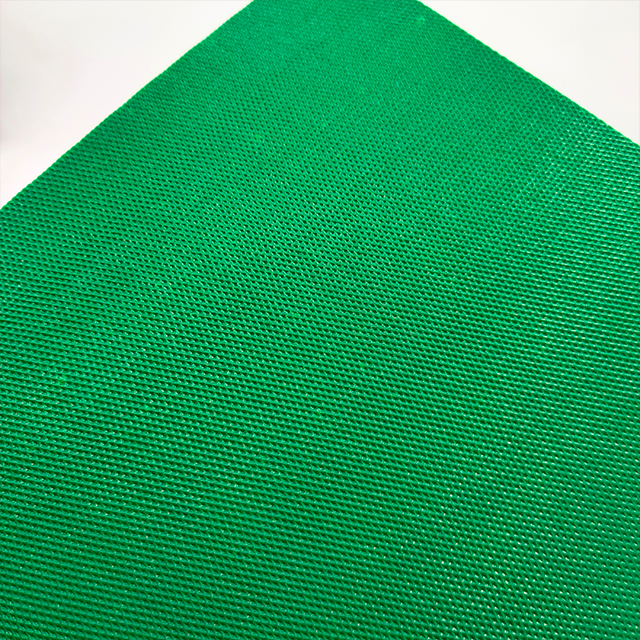

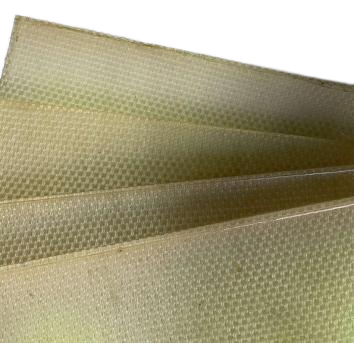

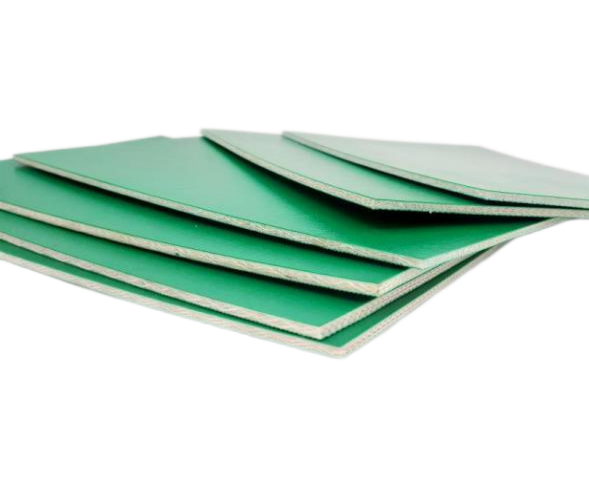

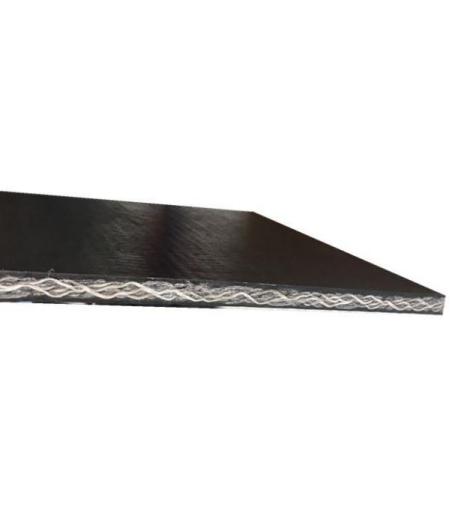

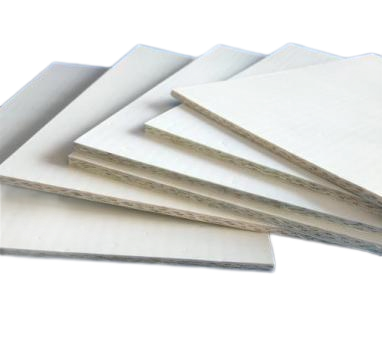

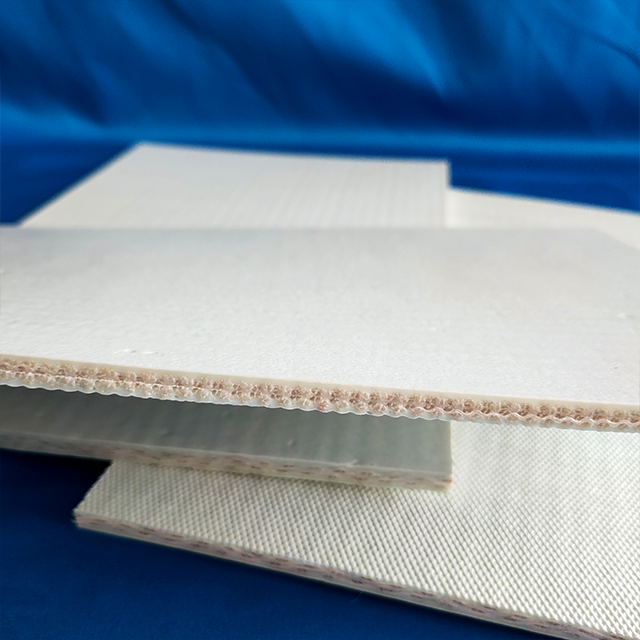

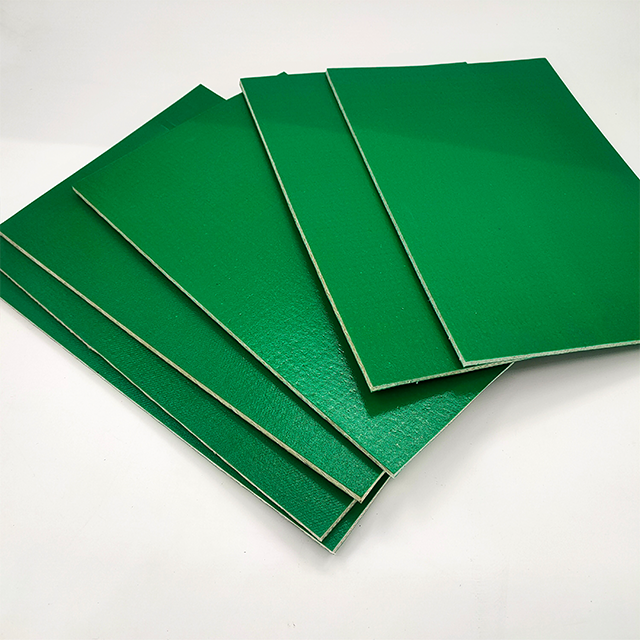

PVG White Environmental Belt PVC Green elevator Belt PU White Environmental Belt PVC Elevator Belt
Overall Specifications
Type | Colour | Tensile Strength (N/mm) | ambient temperature （℃） | Elongation @ 10% Tensile Strength（%) | environmental protection | flame resistance | conductivity |
PVC480 | green Black | ≥480 | -15～+85 | 0.7 | ✔ | ||
PVC680 | ≥680 | 0.8 | ✔ | ||||
PVC880 | ≥880 | 0.9 | ✔ | ||||
PVC1080 | ≥1080 | 0.9 | ✔ | ||||

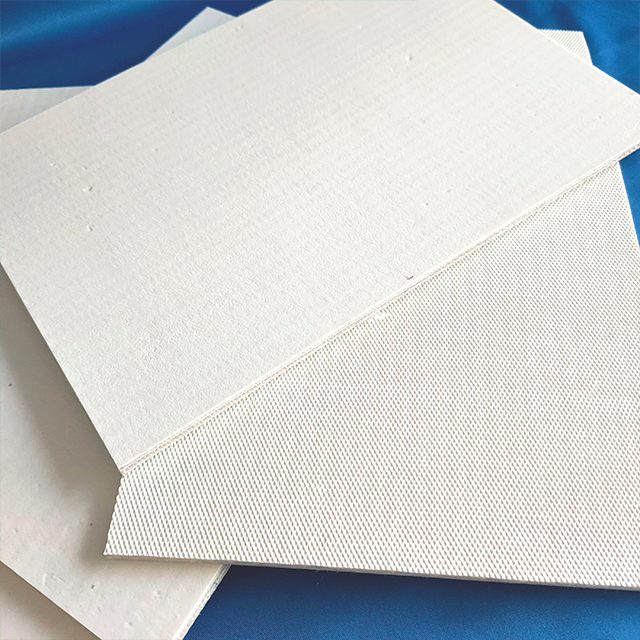

PVC480 | white | ≥480 | -15～+85 | 0.7 | ✔ | ||
PVC680 | ≥680 | 0.8 | ✔ | ||||
PVC880 | ≥880 | 0.9 | ✔ |
Performance of PVC cover:
Items | Unit | Index Value |
Tensile Strength | Mpa | ≥15 |
Elongation @ Break | % | ≥300 |
Abrasion Loss | mm3 | ≤100 |
conductivity | MΩ | ≤300 |
Winding property | 200,000 times | without crack |
Hardness | Shore A | 70 |
Friction coefficient (with steel) | 0.68 |
