PVC solid woven series

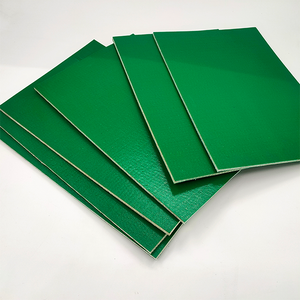

PVC Green Elevator Belt
PVG White Environmental Belt
PU Environmetal Belt
PVC Black Elevator Belt
The PVC solid-woven elevator belt is an industrial conveyor belt featuring a multi-layer integrated woven core, which is impregnated with PVC paste resin and liquid rubber, then plasticized under high temperature. Its unique structural design and material formulation endow it with excellent oil resistance, flame retardancy, and anti-static properties. Our product has proven highly effective in grain elevator applications and has received widespread acclaim from customers.
(1) High-Strength Integrated Core Structure
The belt core is constructed with multi-layer interwoven polyester filaments and cotton yarns, forming a unified woven structure. This eliminates the delamination or surface peeling issues common in traditional multi-layer rubber belts caused by uneven stress distribution across layers.
Ensures even force distribution, high linearity of the belt body, stable operation, and minimal deviation or collisions with elevator drums.
(2) Outstanding Physical Properties
Superior Tear Resistance: The plasticized and densified core structure delivers significantly enhanced tear resistance and anti-burst fiber performance compared to conventional layered cores.
Abrasion & Corrosion Resistance: Inherent PVC properties provide excellent oil resistance, chemical solvent resistance, moisture-proofing, and wear resistance.
(3) Enhanced Safety Performance
Flame Retardant & Anti-Static: Complies with industrial safety standards, effectively preventing electrostatic sparks and combustion risks, ensuring safe operation in flammable/explosive environments.
The PVC solid-woven elevator belt overcomes structural limitations of traditional multi-layer conveyor belts through its integrated core design and polymer plasticization process, delivering exceptional strength, durability, and safety. Its flame-retardant, anti-static, and eco-friendly properties further expand its application scope, making it the ideal choice for modern industrial lifting systems.
Overall Specifications
Type | Colour | Tensile Strength (N/mm) | ambient temperature （℃） | Elongation @ 10% Tensile Strength（%) | environmental protection | flame resistance | conductivity |
PVC480 | green Black | ≥480 | -15～+85 | 0.7 | ✔ | ||
PVC680 | ≥680 | 0.8 | ✔ | ||||
PVC880 | ≥880 | 0.9 | ✔ | ||||
PVC1080 | ≥1080 | 0.9 | ✔ | ||||
PVC480 | white | ≥480 | -15～+85 | 0.7 | ✔ | ||
PVC680 | ≥680 | 0.8 | ✔ | ||||
PVC880 | ≥880 | 0.9 | ✔ |
Performance of PVC cover
Items | Unit | Index Value |
Tensile Strength | Mpa | ≥15 |
Elongation @ Break | % | ≥300 |
Abrasion Loss | mm3 | ≤100 |
conductivity | MΩ | ≤300 |
Winding property | 200,000 times | without crack |
Hardness | Shore A | 70 |
Friction coefficient (with steel) | / | 0.68 |
