• Material: Carbon Steel,Low Alloy Steel,Wear Resistant SteelStainless Steel, etc.
• It solved the problem that the continuous cold rolling is dfficult to control in large diameter,large thickness and special size and difficult to forming in high carbon steel, alloy steel stainless steel materials.

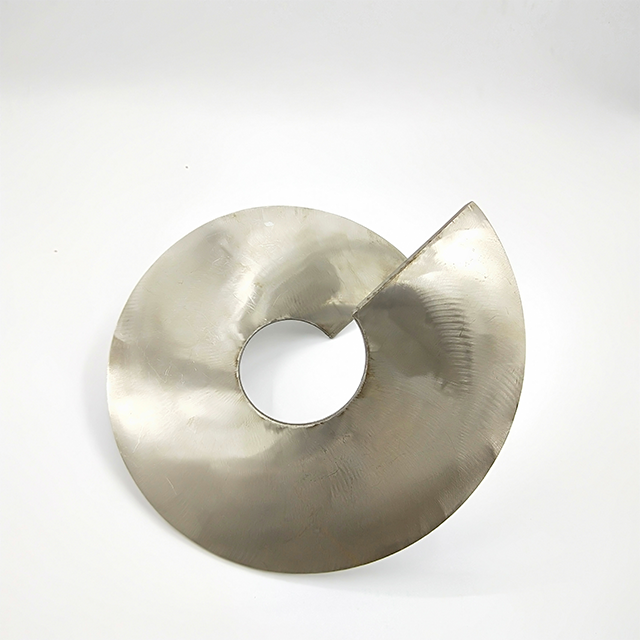

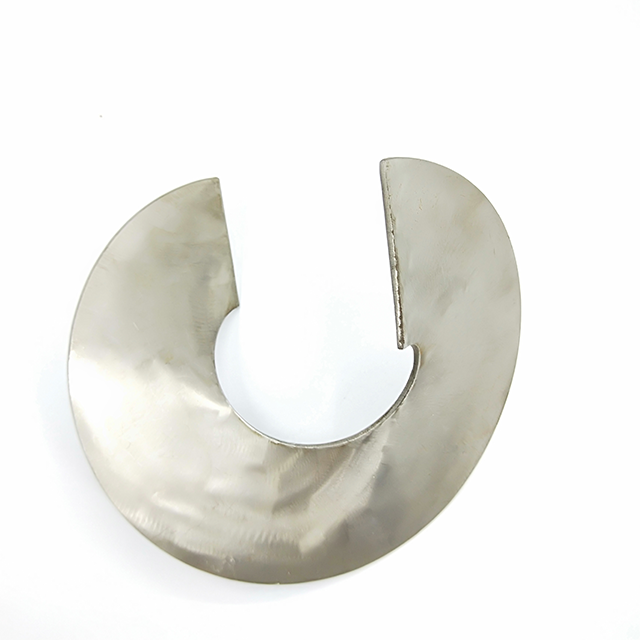

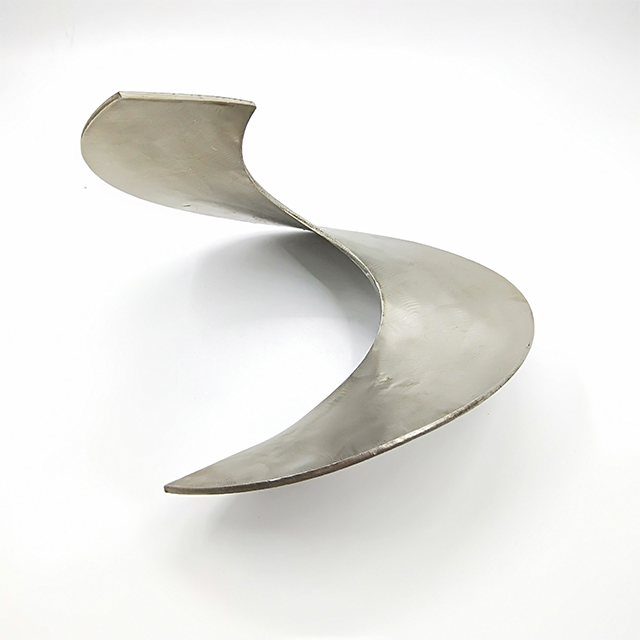

• It is single pitch shape, the inner and outer thickness are same. The out diameter, inner diameter and pitch can be exactly produced according to customer's need.
Pitch P(mm) | Pitch/O.D. Ratio | Max. Outer Diameter D(mm) | Min. Inner Diameter d(mm) | Band Thickness T(mm) | Max O.D./I.D. Rati |
60~100 | ≤1.00 | 480 | 25 | 3-16 | ≤4.0 |
100~150 | ≤1.25 | 480 | 30 | 3-18 | ≤4.0 |
150~200 | ≤1.33 | 520 | 50 | 3-20 | ≤4.0 |
200~250 | ≤1.43 | 630 | 60 | 3-25 | ≤3.8 |
250~300 | ≤1.43 | 670 | 65 | 3-25 | ≤3.8 |
300~350 | ≤1.43 | 900 | 90 | 3-30 | ≤3.8 |
350~400 | ≤1.43 | 950 | 90 | 3-30 | ≤3.6 |
400~450 | ≤1.43 | 950 | 95 | 3-30 | ≤3.6 |
450~500 | ≤1.43 | 1150 | 135 | 3-35 | ≤3.6 |
500~550 | ≤1.43 | 1300 | 150 | 3~40 | ≤3.6 |
550~650 | ≤1.43 | 1350 | 150 | 3~40 | ≤3.3 |
650~750 | ≤1.43 | 1400 | 200 | 3~45 | ≤3.3 |
750~850 | ≤1.43 | 1450 | 200 | 3~50 | ≤3.3 |
850~950 | ≤1.43 | 1450 | 250 | 3~55 | ≤3.3 |
950~1050 | ≤1.43 | 1500 | 300 | 3~55 | ≤3.3 |
1050~1200 | ≤1.47 | 1600 | 350 | 3~55 | ≤3.0 |
1200~1250 | ≤1.47 | 1800 | 400 | 3~55 | ≤3.0 |
1250~1400 | ≤1.47 | 2000 | 450 | 3~55 | ≤3.0 |
1400~3000 | ≤1.50 | 3000 | 480 | 3~60 | ≤3.0 |
