Ground Mat Series

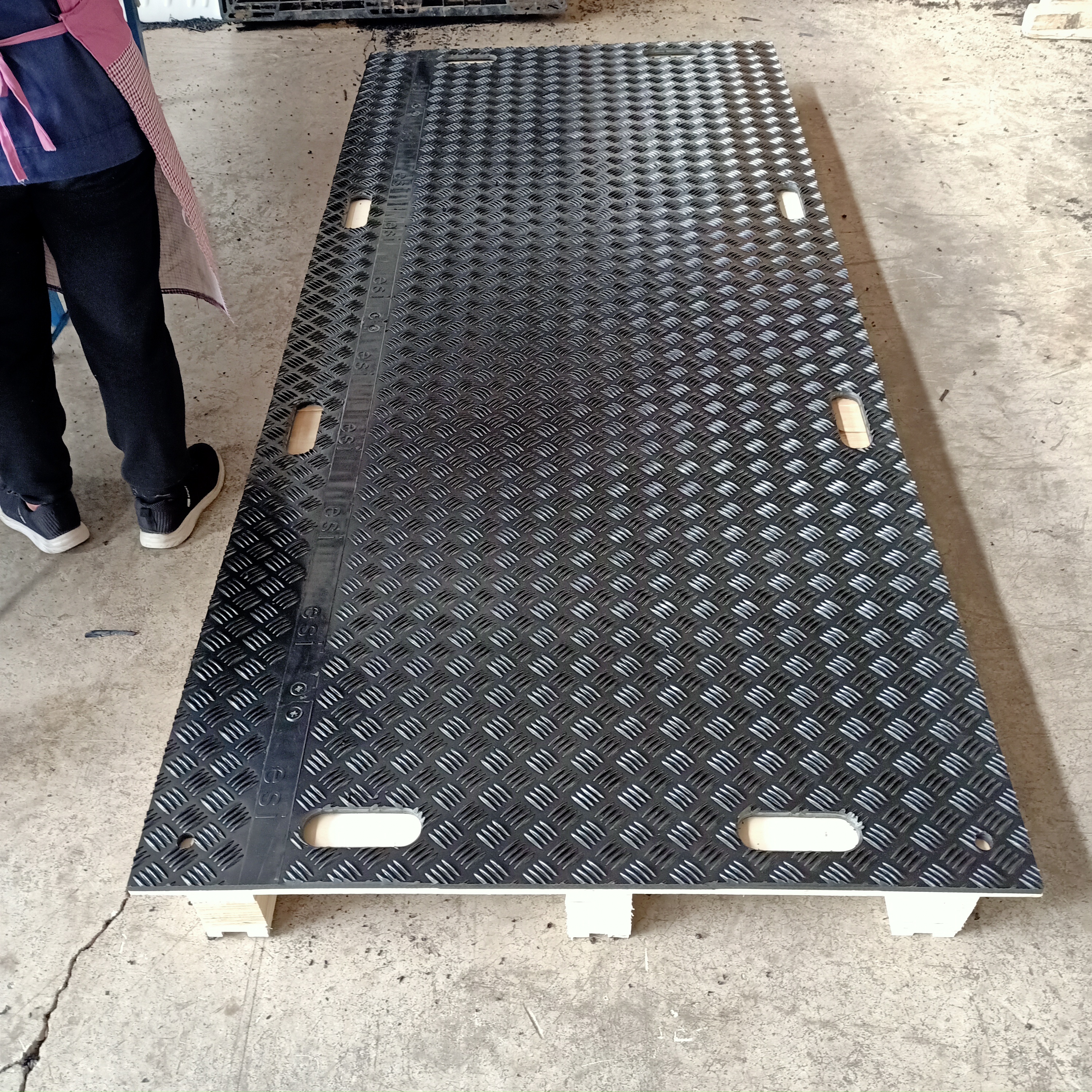

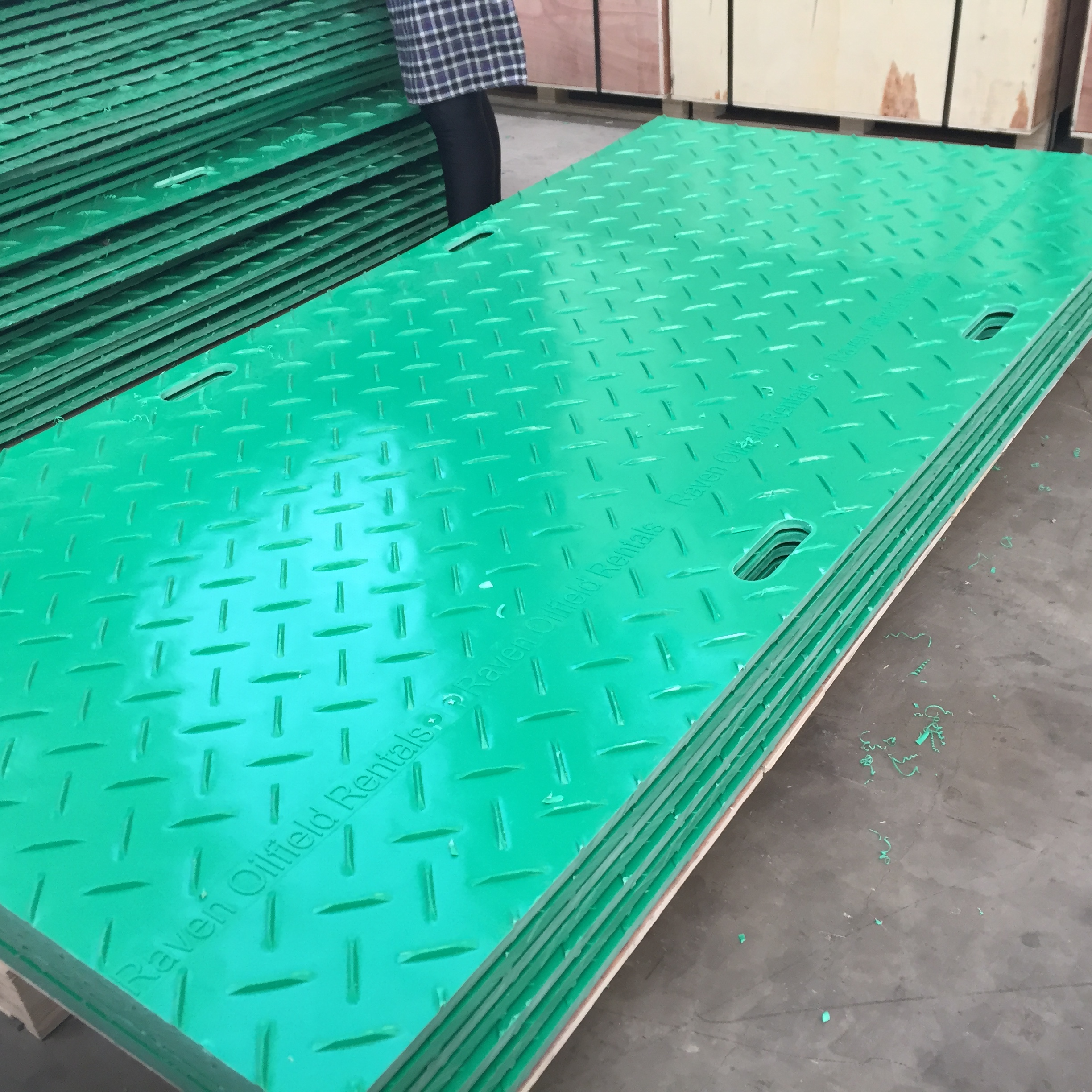

HDPE (High-Density Polyethylene) road plates are a high-strength, lightweight, and durable temporary or semi-permanent paving solution, widely used in construction sites, temporary passages, event venues, and other scenarios. Their modular design facilitates quick installation and disassembly, allows for reuse, and offers excellent load-bearing capacity, anti-slip properties, and weather resistance.

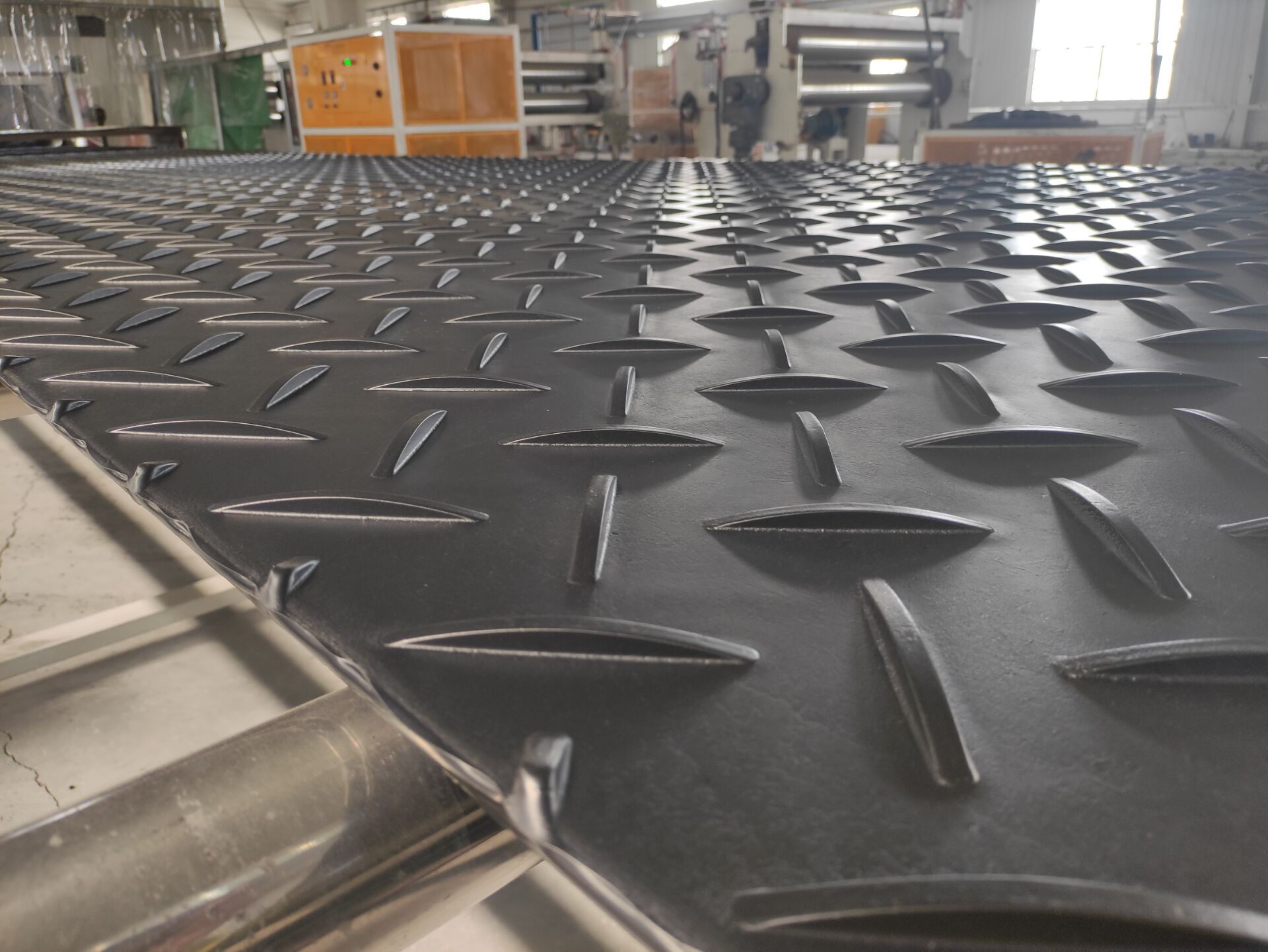

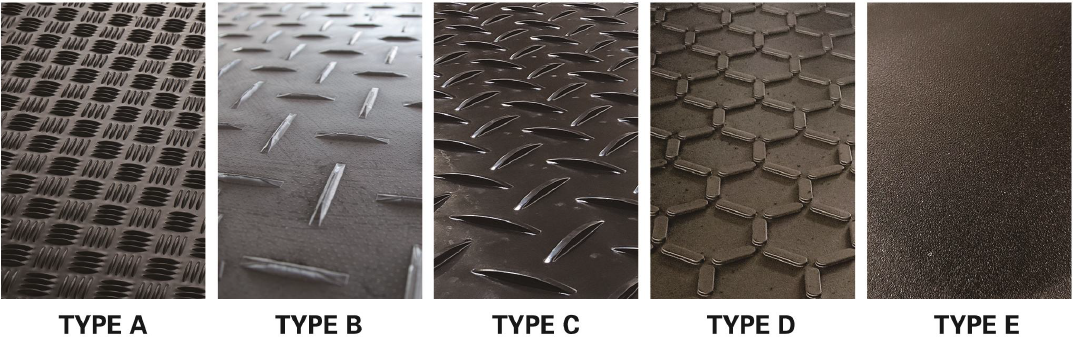

The board surface features anti-slip patterns or drainage holes to improve safety and drainage efficiency.
Some products adopt a hollow or reinforced rib structure to reduce weight while increasing load-bearing capacity.

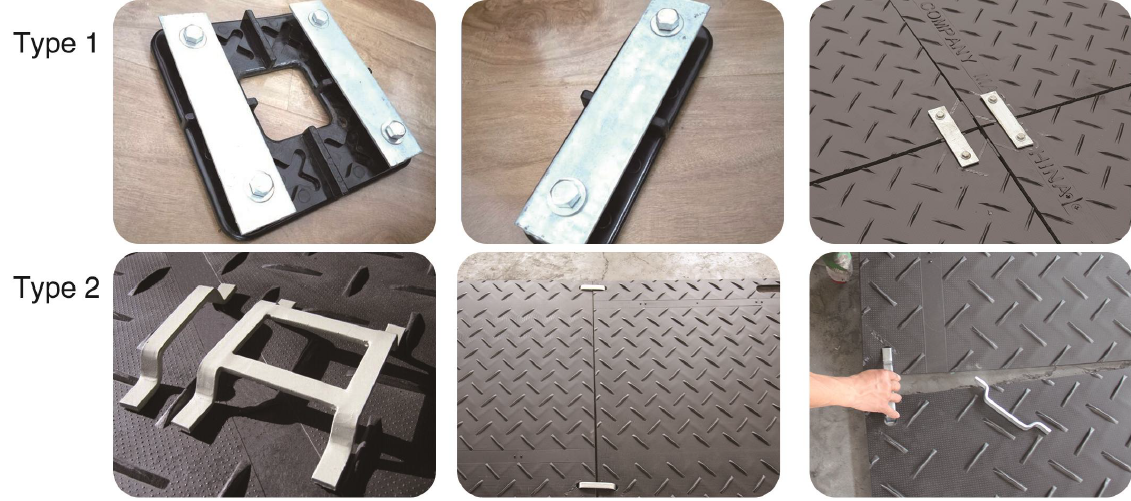

The edges may be equipped with snap-lock or bolt connection systems for rapid assembly and secure fixation.
✔ High Strength & Pressure Resistance: Excellent impact and compression resistance, suitable for heavy-duty vehicle traffic.
✔ Lightweight & Easy Installation: Weighs only 1/10 of concrete or steel plates, can be manually transported and installed.
✔ Superior Weather Resistance: UV-resistant, withstands extreme temperatures (-40℃ to 80℃), adaptable to harsh environments.
✔ Slip-Resistant & Durable: Textured surface design prevents slipping in rainy conditions, resistant to long-term wear.
✔ Eco-Friendly & Recyclable: 100% recyclable, complies with sustainable development requirements.
✔ Low Maintenance Cost: Requires no upkeep, easy to clean, and offers long service life.

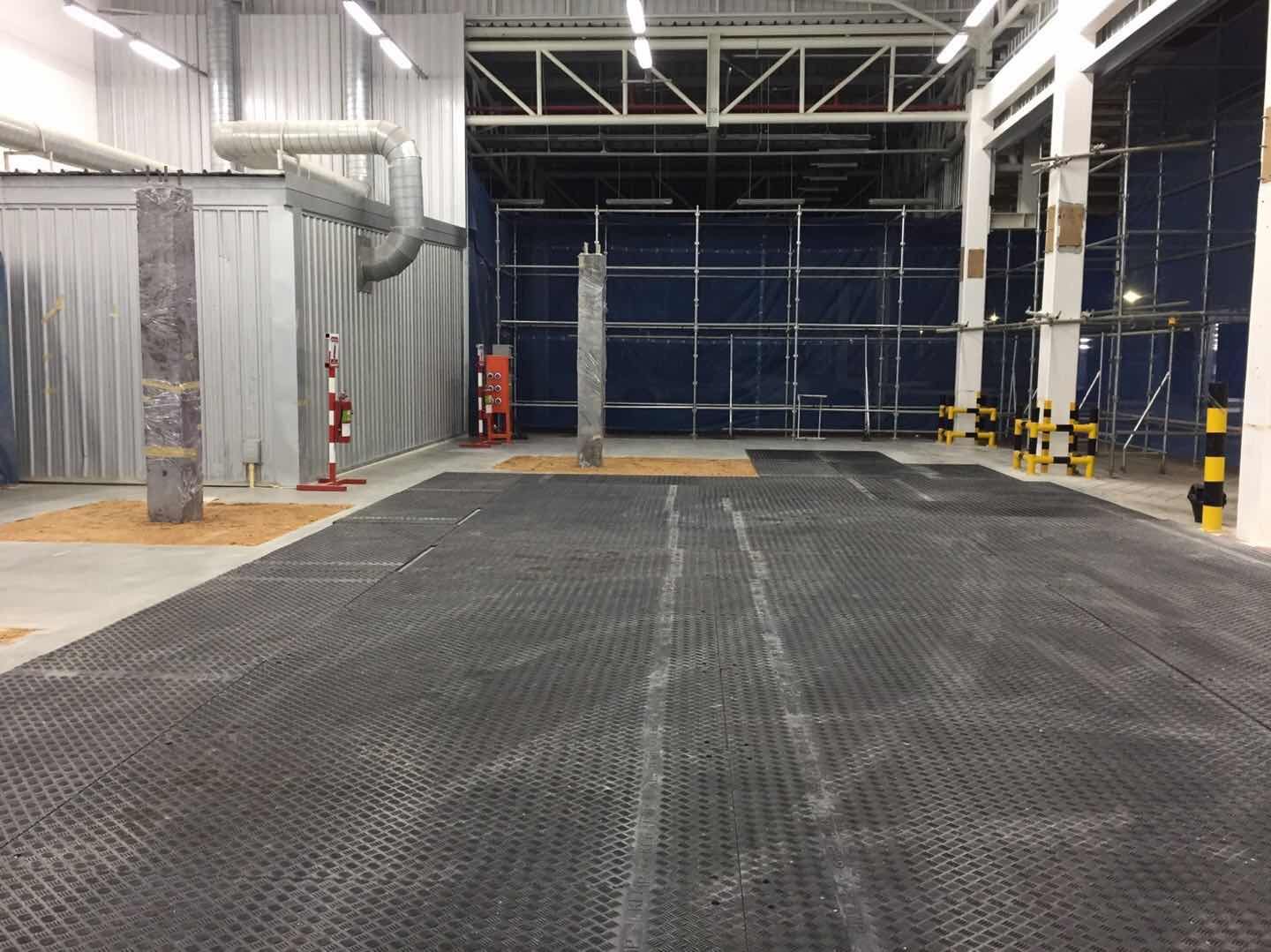

Construction Sites: Temporary roads, equipment access routes, foundation pit support, etc.
Emergency Response: Post-disaster temporary road construction to ensure rescue vehicle access.
Outdoor Events: Temporary ground covering for music festivals, exhibitions and other events.
Agriculture/Forestry: Reinforcement of soft ground in farms, wetlands and similar environments.
Municipal Engineering: Park walkways, tree pit covers, temporary parking lots, etc.
| Type | Length | Width | Thickness | Weight | Load Capacity | Qty in Container |
| JWQ-01 | 4' | 2' | 0.5' | 23lbs | 45 Tonnes | 20ft-900pcs |
| 1220mm | 610mm | 12.7mm | 10.4kgs | 40ft-1800pcs | ||
| JWQ-02 | 8' | 2' | 0.5' | 46lbs | 60 Tonnes | 20ft-500pcs |
| 2440mm | 610mm | 12.7mm | 20.8kgs | 40ft-1000pcs | ||
| JWQ-03 | 8' | 3' | 0.5' | 69lbs | 70 Tonnes | 20ft-400pcs |
| 2440mm | 915mm | 12.7mm | 31.2kgs | 40ft-700pcs | ||
| JWQ-04 | 8' | 4' | 0.5' | 92lbs | 80 Tonnes | 20ft-300pcs |
| 2440mm | 1220mm | 12.7mm | 41.7kgs | 40ft-500pcs | ||
| JWQ-05 | 9.5' | 3.6' | 0.5' | 98lbs | 90 Tonnes | 20ft-520pcs |
| 2900mm | 1100mm | 12.7mm | 44.7kgs | 40ft-900pcs | ||
| JWQ-06 | 6.5' | 3.3' | 0.4' | 50lbs | 40 Tonnes | 20ft-520pcs |
| 2000mm | 1000mm | 10mm | 22.6kgs | 40ft-900pcs | ||
| JWQ-07 | 9.8' | 4.9' | 0.6' | 162lbs | 100 Tonnes | 40ft-320pcs |
| 3000mm | 1500mm | 15mm | 73.3kgs | |||
| JWQ-08 | 9.8' | 4.9' | 0.8' | 211lbs | 120 Tonnes | 40ft-220pcs |
| 3000mm | 1500mm | 20mm | 95.8kgs |
