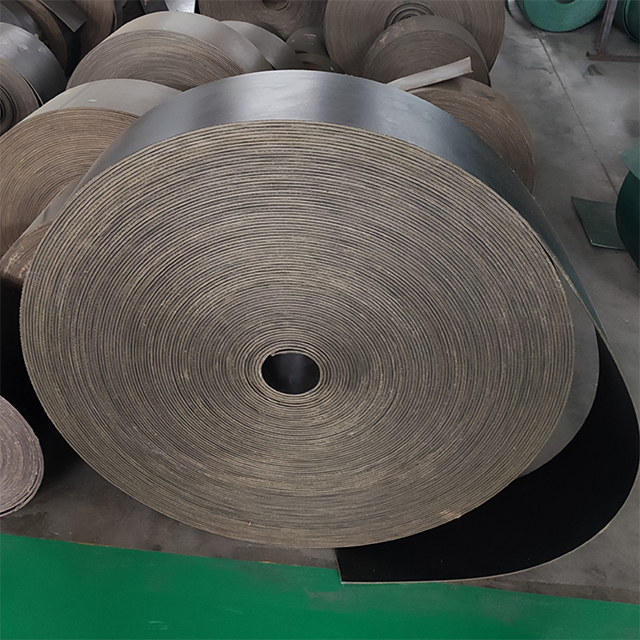

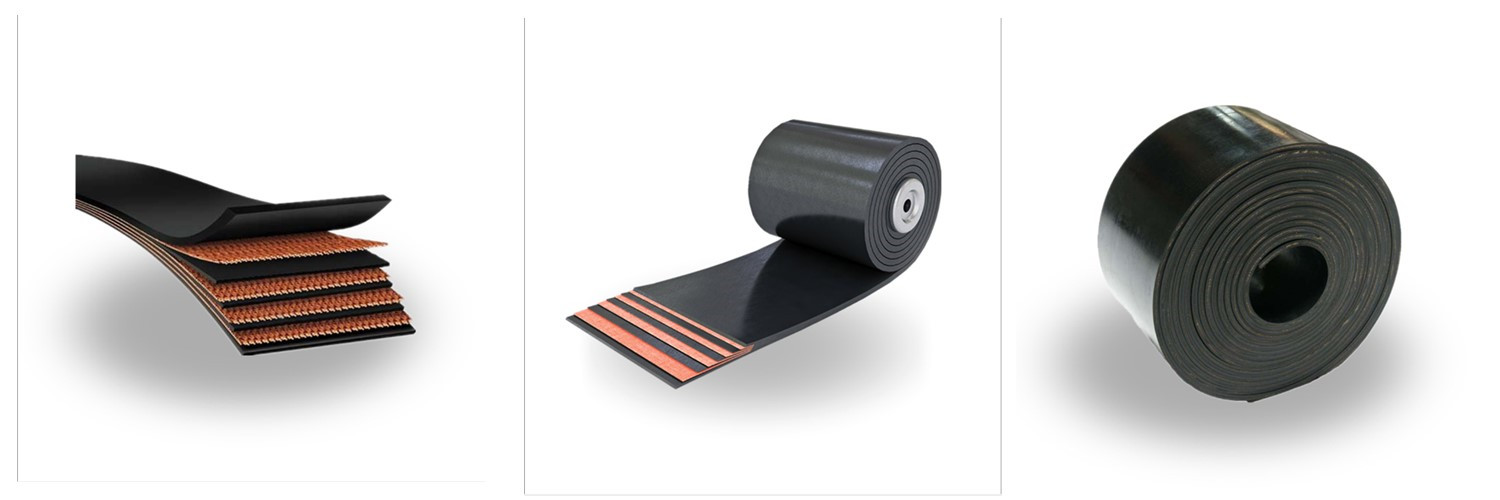

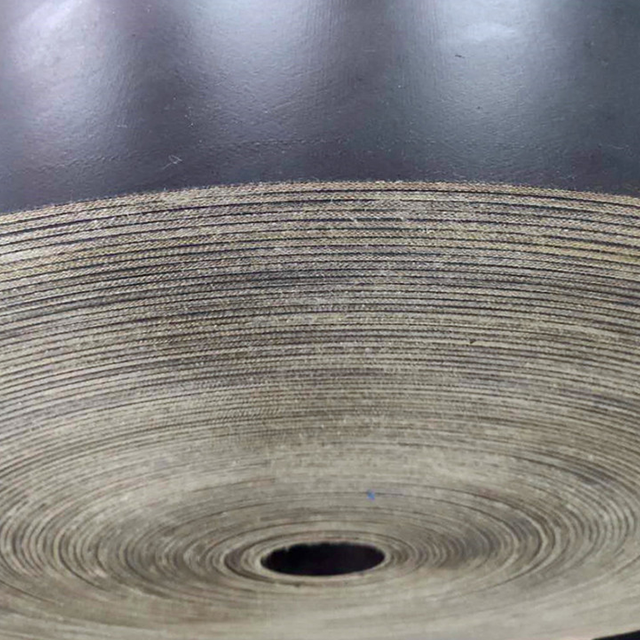

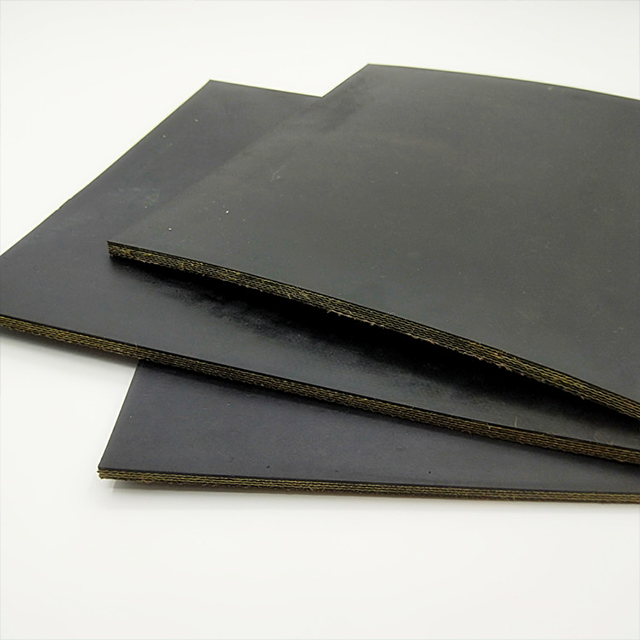

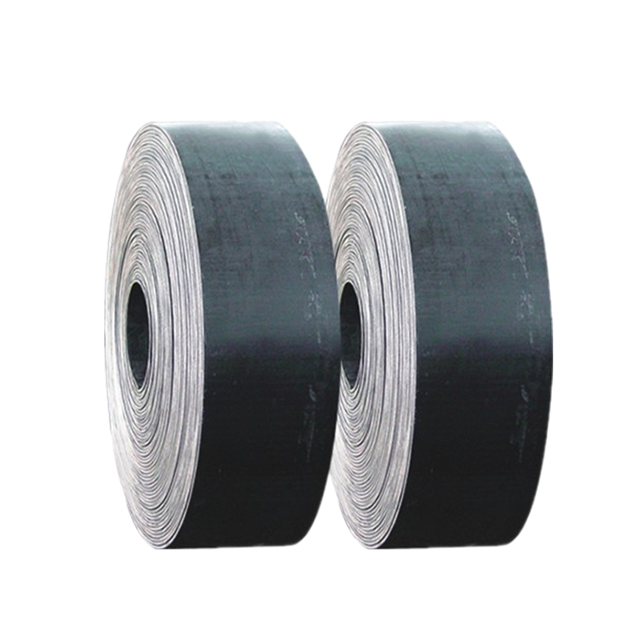

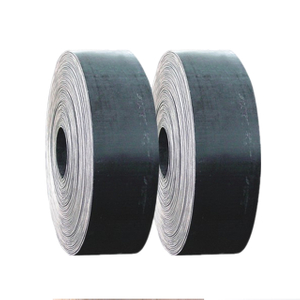

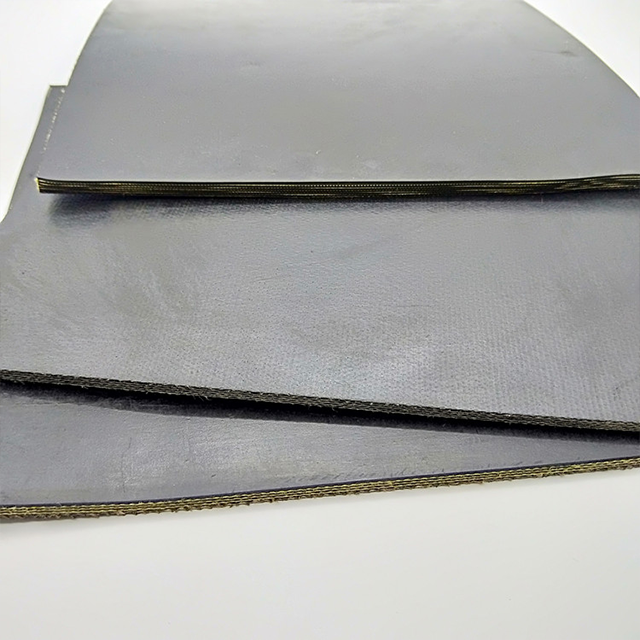

EP rubber elevator belt
Supply characteristics
*length and width can be customized.
*Drill hole service can be provided to make install and usage easy.
 |

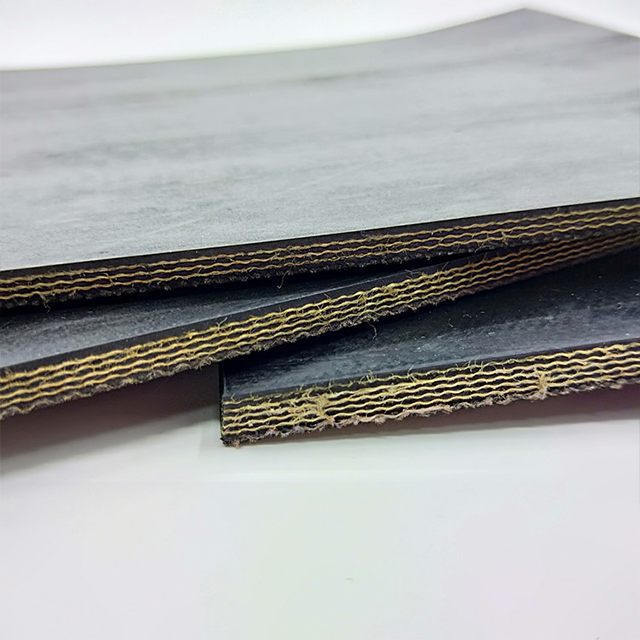

*EP rubber elevator belt,the frame material is synthetic fiber impregnated canvas.Low shrinkage polyester is used in warp and weft direction,and add a layer of wear-resistant canvas on the contact surface between the lifting belt and the head wheel.It is a high performance belt suitable for food and food processing industry.
*Mainly apply to normal temperature,no wet and corrosion environment.Usually for small bulk granular materials of non-oleaginous or non-biological additives.
*Elevator belt width ≥500mm and the height ≥35 meters.Enhanced round edge elevator belt can be customized according to the intensity request.
*According to the work condition,heat-resistant,anti-corrosion and anti-static elevator belt can be customized.
*In order to improve the transmission efficiency,reduce abnormal wear of the belt,we recommended to use pulley with rubber cover.
Type | Carcass structure | Tensile Strength （N/mm) | Ambient temperature（℃） | Elongation @ 10% Tensile Strength（%) | temperature resistance | Cold resistance | oil resistance | inflaming retarding |
600YP | 3EP+1CC | 600 | -20～+70 | ≤1.6 | ||||
800YP | 4EP+1CC | 800 | ||||||
1000YP | 5EP+1CC | 1000 |
Cover Rubber Properties
Items | Index Value | Remark | Items | Index Value | Remark |
Carcass Ply to Carcass Ply | 4.5(Mp) | abrasion loss | ≤150（mm3） | ||
Cover to Carcass Ply | 3.5 (Mp) | Hardness | 60-65(Shore A) | ||
Tensile Strength | ≥18（Mp） | Elongation @ Break | ≥420（%） | ||
Friction coefficient | 0.75 | with steel head wheel | Acid Properties | 20（%） | Volume Expansion |
Friction coefficient | ＞1 | With rubber head wheel | Alkali Properties | 5.2（%） | Volume Expansion |
